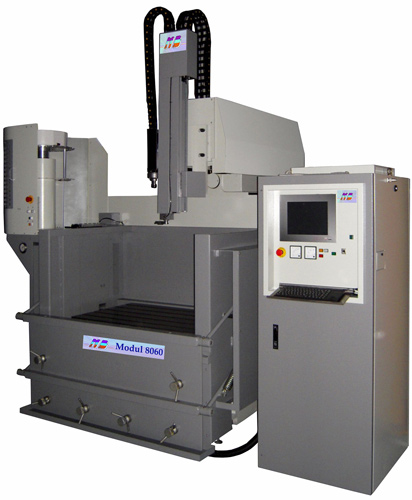

| Type of machine: | COBRA Modul 6045 CNC | COBRA Modul 8060 CNC |
|---|---|---|
| Table size | 750 x 600 mm | 1000 x 800 mm |
| Travel distance X & Y Axis | 650 x 450 mm | 800 x 600 mm |
| Travel distance Z Axis (Drilling) | 400 mm | (660) 565 mm |
| Travel distance W Axis (Head) | 360 mm | (520) 420 mm |
| Distance table to guide max | 35 - 395 mm | (620) 100 ~ 520 mm |
| Max. weight of work piece | 750 kg | 3000 kg |
| Electrode diameter | dia 0,10 ~ 3,0 mm | dia 0,10 ~ 10 mm |
| Diameter auotmatic change | dia 0,10 ~ 3,0 mm | dia 0,3 ~ 6 mm |
| Machine dimension | 2200 x 2000 x 2600 mm | 3200 x 3400 x 2900 mm |
| Machine weight | 1600 kg | 5400 kg |
| Power Supplies: | ||
| Max. power capacity | 4,5 kVA | 5,5 kVA |
| Max. average machining current | 50 A | 50 A |
| Dielectric reservoir: | ||
| Medium | Ion-water / Dielectric Oel Held | |
| Flushing type standard | 80 Liter | 220 Liter |
| Submerged type | 220 Liter | 1000 Liter |
| Filterung | 2 Filtertower | 5 Filtertower |
