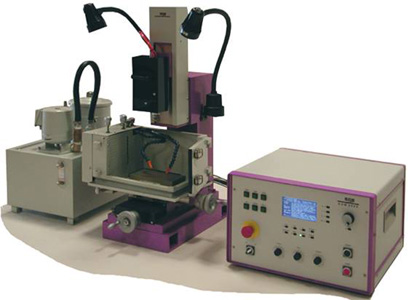

Type of machine: ..................COBRA Mini
Travel distance X;Y;Z:.................150 x 100 x 180 mm
Max. size of work piece:.........250 x 15000 x 160 mm
Wight of work piece:......................................50 kg
Tank size:..........................................200 x 100 mm
Weight of electrode :........................................5 kg
Machine dimension :...............1600 x 950 x 1200 mm
Generator unit:........................................................
Total power input:.........................................2,0 kVA
Nominal current:...........................................20 Amp
Dielectricum unit:.....................................................
3 axes with Z cut off...............................X, Z, Y axes
Rotation spindle with clamping.............50 - 500 U/Min
Options: .......Magnetic - Data display on PC via RS232
Advantages: Can be mounted on to a workbench.
.....................Smallest steps in the generator
.....................Plus/minus switch programmable for bedding-in.
.....................Programmable jumping over distance (mm)
.....................Data memory callable in display
.....................Error message in display (several languages possible)
