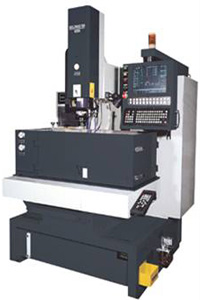

Type of machine: .............M35 A C21
Travel distance X;Y;Z:..........350 x 300 x 300 mm
Max. size of work piece:......800 x 400 x 250 mm
Max. weight of work piece:.....................400 kg
Max. weight of electrode:.........................80 kg
Accurary of linear scale.............................1µm
Distance table:............................200 ~ 500 mm
Elektrode holder:..............................................
Tank size:........................960 x 600 x 3800 mm
Machine dimension:.......1800 x 2000 x 2370 mm
Total power input:.................................3,5 kVA
Nominal current:....................................35 Amp
Dielectric tank:....................................300 Liter
Controller: 32-Bit CPU
..................14" colour monitor
..................RS232 und 3,5" floppy disc
..................Graphical assistance when programming
..................E-Pack for erosion parameter (material combinations)
..................A-Pack for programme run (rough to fine)
..................G and M code programming
..................Several jumping speeds
..................Fuzzy-logic programmable
..................Digital generator with different types of pulse
..................3 to 4 axes simultaneous-erosion
..................99 zero points
..................Touch cycles (edge-block-hole-comer)
..................Controller modular expandable (C15 A to C21)
..................Large removal rate with low wear <0,1%
..................Graphite erosion 50% quicker than standard generator
..................Special cycle for small taper rip electrodes
..................1
Advantages: .....PC-controller with digital generator, from which the trigger voltage can be
.........................called over the generator adjustment parameter.Different types of pulse are
.........................possible (HM-Graphite etc.) Generator booster mountable. All data are
.........................stored in the PC.
Options: ...........C axis - elektrode changer, Ethernet connection.
Miscellaneous: This machine is also available as polishing erosion machine.
........................Whereby a special dielectric is used. But it is possible to change to.
